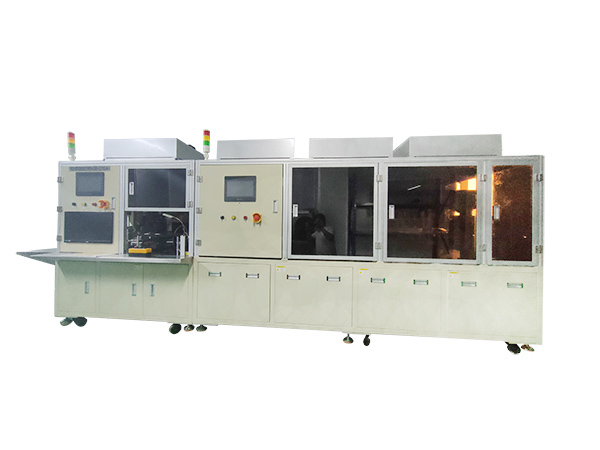

What are the steps to use the OCA full-automatic connection laminating machine? Yongquan came to introduce.

Full laminating machine is also called "vacuum full laminating machine" or "touch screen laminating machine", English "OCA laminating machine". It is an industrial automation product controlled by PLC or single-chip microcomputer, and one of the equipment used for mobile phone screen bonding. The principle of bonding is to place the mobile phone LCD screen and glass cover in a vacuum box in a vacuum environment, and use the cylinder pressure of the machine to lower the inner mold of the vacuum cylinder, and completely replace the glass cover and the LCD screen on the lower mold of the vacuum cylinder. Lamination. Then complete the key process in the repair of mobile phone screens, that is, "OCA bonding process."

1. The device of the vacuum pump

First of all, when we receive the full laminating machine, the first step is to connect the vacuum pump tube, and then make sure that the vacuum pump tube is connected with the full laminating machine, and the power supply is also controlled by the full laminating machine. If it is not in this posture, the full laminating machine cannot be used, and there are corresponding interfaces corresponding to the above.

​

2. Air compressor device

The air compressor interface of the full laminating machine is an 8-point pipe. After we install the interfaces, remember to fill up the air pump and open both the air valve and the power supply to ensure that the air can be pumped normally when there is no air!

3. Debugging of vacuum gauge

Let's adjust the vacuum gauge to about 95 of the negative pressure. For plateau areas, adjust the vacuum value according to the vacuum pump's practice. For the adjustment method, press the up arrow or the down arrow to adjust!

4. Adjustment of temperature control meter

The temperature control is mainly controlled at 50 degrees Celsius. The adjustment method is to press the first function key, then the second selection key, then press the up and down keys to adjust to the appropriate temperature, and then press the first function key to confirm.

5. Adjust the parameters of the screen

After powering on, after confirming the time parameter, let's talk about the manual mode on the screen, and just adjust it to the active mode!

6. Pressure adjustment

Generally, in the current market, the pressure that our screen accepts is between 3 and 5 pressures. If the screen becomes thinner in the future, we can adjust it to 2 pressures!

7. Start OCA full-automatic connection laminating machine

After confirming that all the parameters are adjusted, we can press the two green start buttons to press together normally!
